The EXP-403 Pallet Stretch Wrapping Machine offers efficient, secure wrapping with adjustable settings for load stability and reduced film usage.

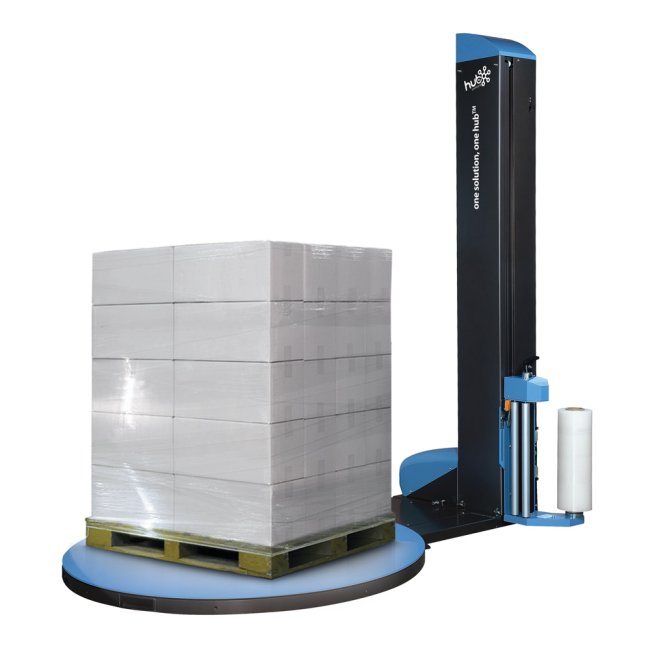

The EXP-403 Pallet Stretch Wrapping Machine - Spring Brake Type is a semi-automatic solution designed to enhance packaging efficiency and load stability across various industries. This entry-level premium machine offers advanced features typically found in higher-end models, ensuring reliable performance and user-friendly operation.
The EXP-403 is an ideal choice for businesses seeking a reliable and efficient solution to enhance their packaging operations. Its combination of advanced features and robust design ensures consistent performance and load stability, contributing to improved productivity and reduced operational costs.
- Turntable Specifications - Equipped with a 1,650mm diameter turntable, the EXP-403 accommodates standard UK pallets, providing ample space for secure wrapping. The turntable speed is adjustable from 1 to 10 rpm, allowing operators to tailor the wrapping process to specific requirements.
- Wrapping Height and Cycle Options - The machine supports a maximum wrapping height of 2,200mm, suitable for most pallet loads. Operators can choose between 1 to 9 top and bottom wraps, with an option for reinforced wrapping, ensuring optimal load security.
- Control Panel and Safety Features - The EXP-403 features a lockable control panel with adjustable tension settings and a quick-release mechanism for ease of use. Safety is prioritised with a soft start and stop function, magnetic brake to hold the turntable during loading and unloading, and an audible warning during the wrapping cycle.
- Additional Options - To accommodate various operational needs, the EXP-403 offers options such as a multi-positional ramp for hand pallet trucks (up to 1,200kg load weight), extra-long ramps for powered pallet trucks, and pit frames for in-floor installation.
- Turntable Diameter - 1650mm
- Maximum Wrapping Height - 2.2m
- Maximum Load Capacity - 1,650kg
- Turntable Speed - Adjustable from 1 to 10 rpm
- Film Roll Specifications - Width up to 500mm; Outer Diameter up to 250mm; Inner Diameter 76mm
- Power Supply - Single-phase 240V
- Power consumption - 0.8kW
- Machine Dimensions - 2680mm (L) x 1650mm (W) x 2560mm (H)
- Ramp for EXP Pallet Wrapping Machine including fixing bolt (PWMRAMPEXP)
